Video Capture via Wayland Proxy

A core component of any game streaming service is a system for capturing video output from games. Stratus uses a custom Wayland proxy for video capture in order to achieve lower latencies while also balancing the amount of new development required. This post describes why we chose this system, how we implemented it, and how it performs in the context of game streaming.

Wayland

First, for context, every Stratus game runs on Linux under Wayland, a protocol that enables clients (i.e. applications) to send frames to a server (also called a compositor) to be displayed. The compositor's job is to combine (or composit) the output of each client into a single frame (along with wallpapers, toolbars, window borders, etc) and then render it on the user's screen. (Stratus uses a headless instance of the Sway compositor, which is based on the popular wlroots library.) The client and compositor maintain a shared state consisting of a set of objects that are manipulated by requests (messages from the client to compositor) and/or events (messages from the compositor to client). The underlying format for these messages is relatively straight-forward and is described well in the official Wayland Book.

Requirements & Alternate Solutions

Having a low latency is the most important requirement of a video capture system for game streaming. We wanted to find a method for getting access to each frame as soon as it is rendered by the game, without any additional delays or overhead. Unfortunately, our needs were not easily satisfied by existing solutions.

A standard option for video capture on Wayland is the ext-image-copy-capture protocol. However, when we started working on Stratus in late 2025, wlroots' implementation of this protocol only supported capturing the contents of entire composed screens, not individual windows. (This was finally resolved in March 2026 with the release of wlroots 0.20.0.) This would have made it more difficult to support multiple simultaneous streaming sessions on a single server (one of our initial goals for Stratus), and would have also introduced some additional compositing overhead. Another technique used by other game streaming services such as NVIDIA GeForce NOW is to create virtual monitors and write a driver to capture the frames rendered to them. This not only suffers from the same fundamental limitation as the first option, but it also adds additional latency due to frames being rendered to the display at a fixed refresh rate rather than immediately after they are made available by the game.

A third option that we began investigating was to build our own Wayland compositor that could capture video frames as they were sent by clients. This would give us access to frames from individual windows before they were composited like we wanted, and could theoretically give us the earliest possible access to frames (at least without modifying the games themselves). However, we found that this would have required much more development work than we had the capacity for, most of which wasn't even directly related to video capture. So instead, we settled on a different, even more novel option: capture frames via a custom Wayland proxy. The proxy would sit in between clients and the real Wayland compositor and forward messages between them while listening for messages related to new frames.

The Proxy

However, implementing a Wayland proxy turned out to be much more involved than we anticipated. The standard Wayland library, libwayland, is not designed to be used on the client-side and server-side of a Wayland connection simultaneously. Object interfaces are closely tied to the client or server they were created in and different functions are used for similar actions in client- and server-side programs, including for the global event loop. Additionally, callbacks for handling Wayland messages are specific to a particular object type and must be registered on a per-object basis. So implementing a Wayland proxy using libwayland would require a custom global event loop with thousands of lines of boilerplate code generated to automatically register message handlers for each created object, with each handler reconstructing each received message to be sent out the other side of the proxy.

But despite its shortcomings, libwayland still contains valuable code for creating Wayland connections, de/serializing messages, and managing Wayland objects. This functionality is just not exposed publicly by the library. So to minimize the amount of code we would need to (re)write, we decided to patch libwayland to expose this lower-level functionality and disable its restrictive higher-level features. This approach was heavily inspired by Boyan Ding's wayland-tracer project, which implements a basic Wayland proxy for debugging Wayland applications in a similar way.

We were able to adapt libwayland to our needs with less than two dozen small changes (excluding removing unused code), most of which just removed static keywords from function declarations or commented out unnecessary references to higher-level libwayland structs. The patched library is available in the Stratus repository under stratusd/libs/wayland/. It is used to create a robust proxy system in stratusd/Capture/src/proxy.c that accepts connections from clients, forwards Wayland messages between the clients and the system's real compositor, and provides a generic on_message handler that we can use to implement video capture.

The Capture System

Although the patched libwayland library makes proxying easy, doing additional processing of Wayland messages requires reimplementing some of the higher-level object management functionality that we bypassed in libwayland. Luckily, we don't actually need to handle very many messages to implement video capture.

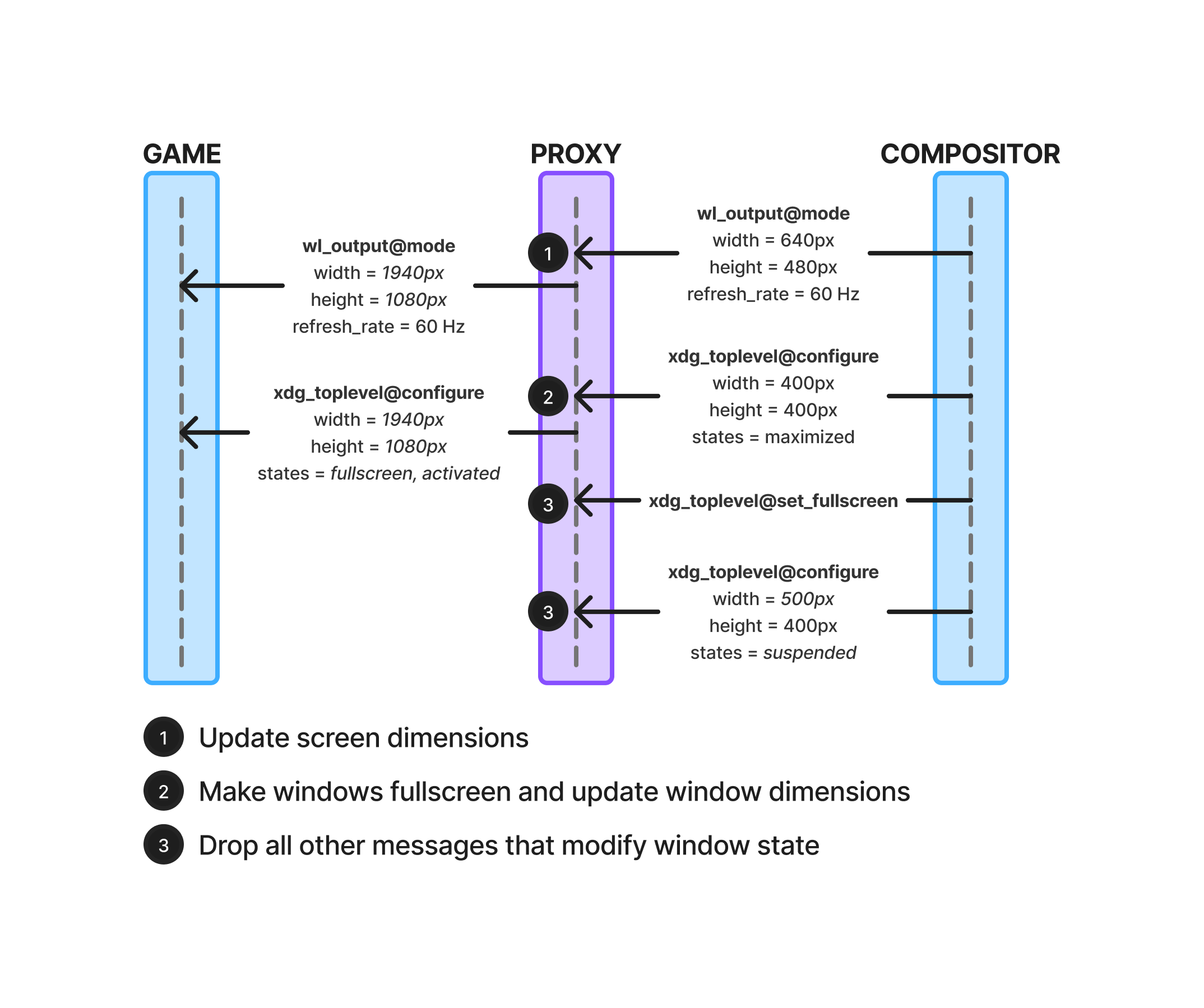

First, before capturing frames, we wanted to force the game to render itself in full screen mode (which is typically preferred for gaming) and with dimensions matching the user's screen size. This was easily implemented by modifying the contents of several Wayland events as they pass through the proxy. The first was wl_output@mode (that is, the mode message associated with wl_output objects), which is sent to advertise the available resolutions and refresh rates for each screen. The second was the xdg_toplevel@configure message, which is sent to request an update to a Wayland client's window state. By changing the dimensions advertised in wl_output@mode events and adding the fullscreen property to xdg_toplevel@config events, we can force games to render themselves in fullscreen mode at our desired dimensions. Although overwriting messages does introduce inconsistencies into the state of the objects shared between the game and compositor, we can avoid actual conflicts in this case by making sure to drop all other messages that specify screen dimensions or modify the window state.

Capturing the video frames themselves is a bit more involved. Under Wayland, an app's windows are represented by wl_surface objects, with the underlying pixels for each surface accessed via wl_buffer objects. These buffers can either be created as shared host memory (SHM) buffers from a wl_shm_pool object, or as direct memory access buffers (DMA) using a zwp_linux_buffer_params_v1 object. In order to render a new frame, the client attaches one or more wl_buffer objects to a wl_surface and sends a wl_surface@commit request. Once the compositor has rendered the frame and is done using the underlying buffer, it sends a wl_buffer@release event to signal that the client may take back ownership of the buffer and use it again for future frames. Finally, when the client is done using a Wayland object such as a wl_buffer, it destroys it by sending a destroy message.

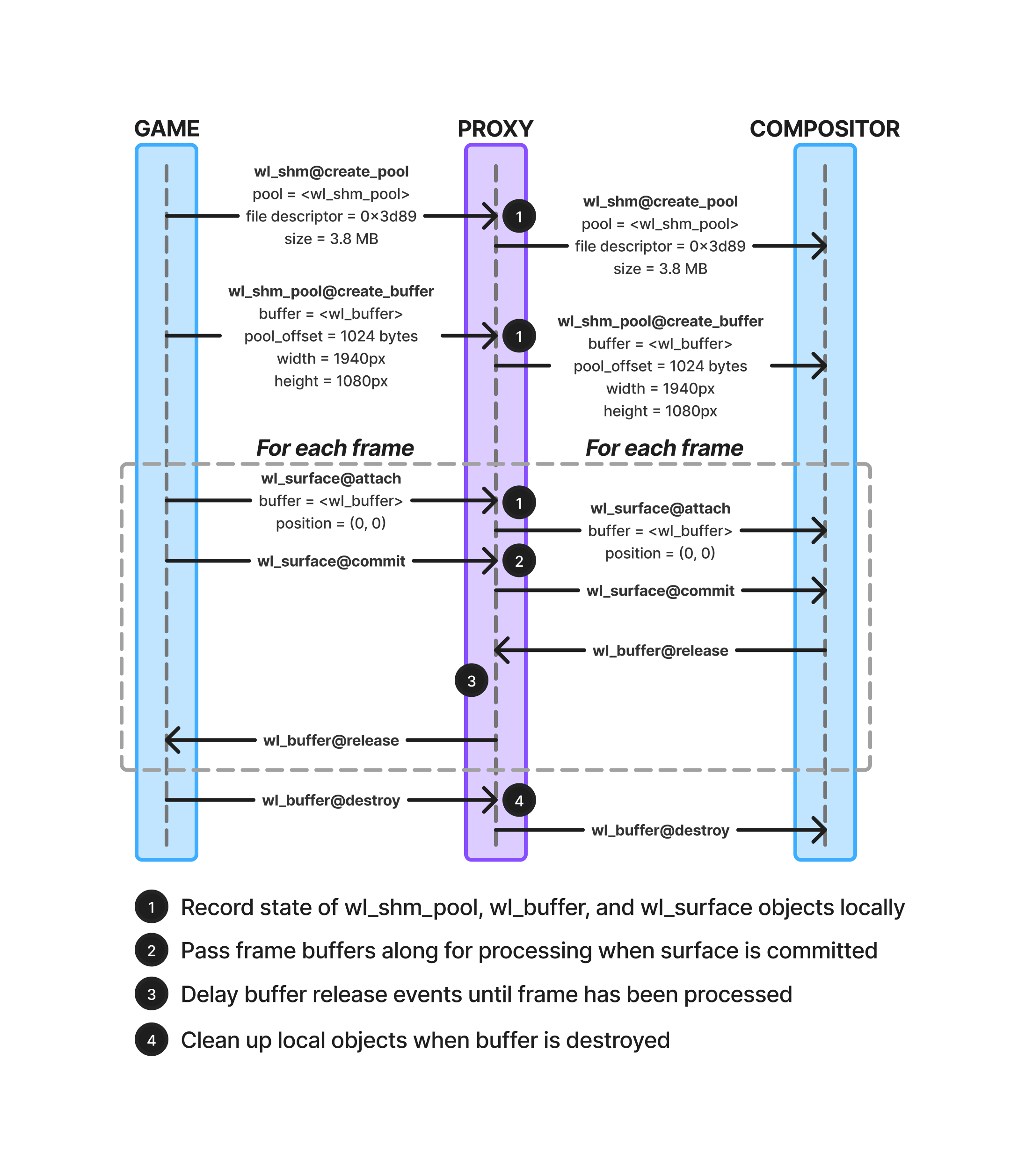

So to capture video through the proxy, Stratus implements a system for keeping track of the state of the relevant wl_surface, wl_buffer, wl_shm_pool, and zwp_linux_buffer_params_v1 objects so that when a wl_surface@commit message is received, the appropriate buffer can be read, encoded, and sent to the user. Additionally, wl_buffer@release events sent by the compositor are held back until frame processing is complete to prevent the game from modifying the buffer while Stratus is still processing it. Lastly, local objects are marked as deleted when the associated destroy requests are received. However, Wayland allows clients to destroy objects "out of order" (for example, destroying a wl_shm_pool object before its child wl_buffer object), so the capture system must track object dependencies to ensure that an object's resources are only freed after they are no longer required by any other object.

Results

The final capture system flawlessly intercepts frames for Stratus games with a per-frame overhead of around 10 microseconds. Although we have not had the chance to perform a thorough comparison with alternative video capture solutions, we believe that our unique Wayland proxy architecture achieves latencies that are close to the limit of what is possible for video capture on Wayland. While there remains low hanging fruit for improving latency in Stratus' encoding and transport stages, this is not the case with the capture stage. The video capture system provides a solid low-latency foundation that the rest of the Stratus video pipeline builds on top of. For a detailed analysis of Stratus' overall performance, including a comparison with other game streaming services, see this post.

Limitations

The major limitation of Stratus' video capture system is that it depends on the cooperation of Wayland clients. It assumes that they will render their content in a Wayland surface backed by exactly one buffer, and that this buffer will match the requested dimensions. As a result, it does not support advanced Wayland features such as subsurfaces, attaching multiple buffers to a single surface, changing XDG surface geometry to add buffer padding, or transforming buffers via the Viewporter protocol. It also does not support games that refuse to follow the screen dimensions requested by the proxy. Adding support for all of these edge cases is certainly possible, but would dramatically increase the complexity of the capture system and push it further in the direction of becoming a full-fledged Wayland compositor. Luckily, the vast majority of games cooperate when running in fullscreen mode, so this architecture has worked very well for Stratus.
